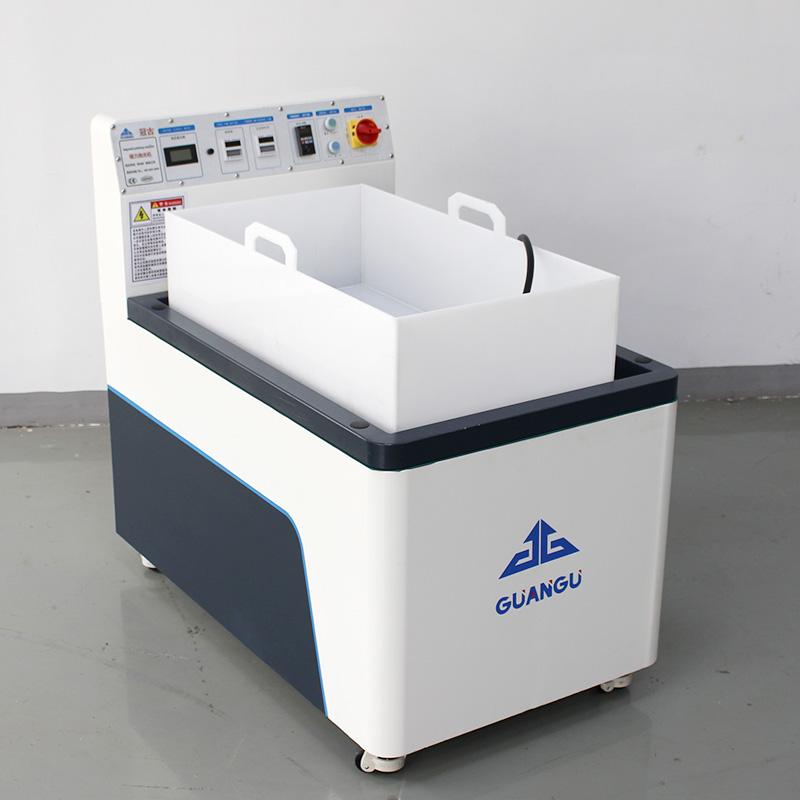

AlgiersGG8850 Buffing machineFactory

The metal magnetic polishing machine uses the power of magnetic field to guide the grinding material (magnetic grinding steel needle) to rotate rapidly and grind the workpiece, so as to achieve efficient grinding and cleaning effects such as removing the rough edge of the metal workpiece (the front), surface polishing, cleaning, cleaning, removing the oxide film, sintering marks and rusting.

Video Hotline
400-800-3945
Product introduction PRODUCT INTRODUCTION
Product ModelGG8850
Dimensions1100*720*1088mm
Grinding groove size800*520mm(square bucket)
Power supplyAC380v(50Hz)16A
Motor power4kw*1
Equipment weight288KG
Grinding capacity20-30Kg
Operation modePositive and negative rotation
Steel needle8kg
Lapping liquid50L
Motor speed1400 RPM
Diameter0.2-2.00mm



The metal magnetic polishing machine uses the power of magnetic field to guide the grinding material (magnetic grinding steel needle) to rotate rapidly and grind the workpiece, so as to achieve efficient grinding and Algierscleaning effects such as removing the rough edge of the metal workpiece (the front), Algierssurface polishing, cleaning, cleaning, removing the oxide film, sintering marks and rusting.

Polishing the surface of the workpiece, polishing, deburring the flying edge, batching, deoxidizing film, to the sintering mark, restoring the metal color cleaning, metal processing debris, residue, batching, surface electroplating, welding spot, metal surface paint removal, precision small profiled parts, irregular parts: removing burr (burr, batching front), polishing, cleaning, chamfering, enhancing surface hardness and other grinding completed at the same time; The minimum size of magnetic steel needle is 0.2mm*3mm, which can precisely grind irregular parts such as holes, pipes, cracks, dead angles, right angles and screw teeth of metal parts; The workpieces do not collide with each other in the process of grinding, and the workpieces of the product do not deform after magnetic grinding, do not affect the accuracy, and do not damage the surface. Guanggu magnetic rolling machine has strong stability and high efficiency; The grinding speed is fast, the average grinding time is about 3 minutes to 20 minutes, and the replacement of the workpiece is fast.


不锈钢螺旋风管

磁力研磨抛光耗材

磁力研磨抛光机主要用到的耗材,包括磁力研磨钢针,又称磁力抛光机针,不锈钢研磨液体,光亮剂,铜铝研磨液,去焊斑研磨液,钢针分离器,研磨槽,研磨桶等。

  • 厂家直供厂家直供
  • 匠心品质匠心品质
  • 安装方便安装方便
  • <
  • 支持定制支持定制


产品特点 PRODUCT CHARACTERISTICS
01

磁力钢针属于半永久性耗材,损耗很低;

02

冠古的抛光研磨液属于高浓缩型药水,1比50比例兑水使用;

03

PP研磨桶采用优质原材料,中间焊接有圆柱体,无死角研磨;

04

磁针采用进口304不锈钢材质,不生锈,更耐用;

05

公司拥有自主设计师,可根据客户需求定制各类耗材,工装;



产品展示 PRODUCT DISPLAY
磁力研磨抛光耗材


使用范围 SCOPE OF USE

1.精密五金冲压零部件   2.不锈钢零件,304不锈钢螺丝螺母。   3.镁铝压铸件   4.锌铝压铸件   5.精密弹簧,弹片零件   6.电子,计算机,通信零部件   7.走心,走刀,CNC自动车床零件   8.航空航天件,医疗器械零件。

-->
  • AlgiersGG8850 Buffing machine


磁力研磨抛光机优势 PRODUCT ADVANTAGE
  • 故障率低

    一线品牌配件,故障率低

  • 操作简单

    操作简单,一人操作多台

  • 不伤工件

    不伤工件,不影响精度

  • -->
  • -->
    成本低

    耗材损耗低,成本低

  • 无死角

    内孔、异形孔、盲孔皆可研磨抛光

  • 应用广

    适合各种材质,各种形状工件
